Soss  |  SKU: 900013

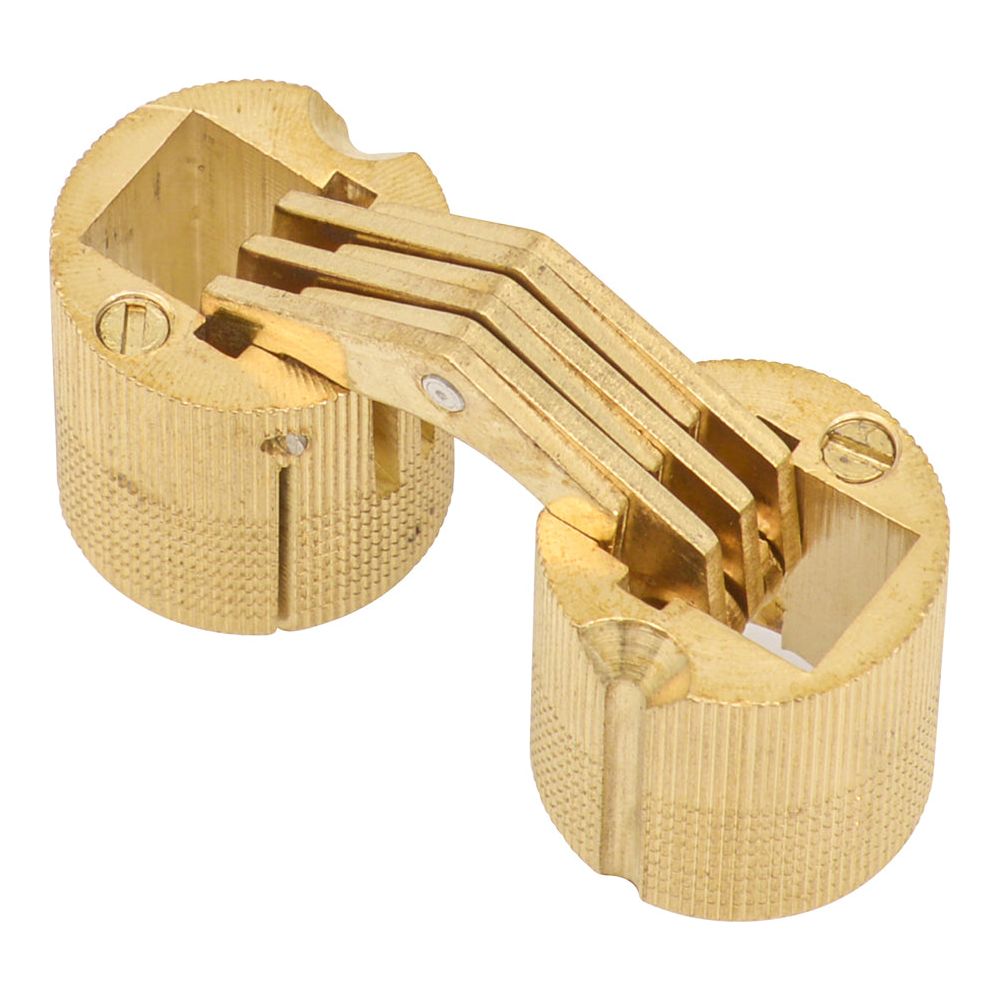

Soss Concealed Barrel Hinge

$298 Each
Type

Description

  • Soss invisible hinge for right or left hand installations.
  • Completely invisible when closed.
  • Designed for light applications.
  • Features an adjustable tensioning screw.
  • When installing these hinges, please note that accurate drilling is essential.
  • No screws are needed (except for the BH085, which includes four small screws)
  • Safety Notice: these hinges are not recommended for vertical or load bearing applications. The manufacturer does not provide weight ratings on this product.
Dimensions
  • #BH085 (HS SKU 900013): 8mm Hole Diameter, 9.6mm Length
  • #BH104 (HS SKU 900000): 10mm Hole Diameter, 11mm Length
  • #BH124 (HS SKU 900002): 12mm Hole Diameter, 13.5mm Length
  • #BH144 (HS SKU 900004): 14mm Hole Diameter, 15.5mm Length
  • #BH164 (HS SKU 900005): 16mm Hole Diameter, 16.5mm Length
  • #BH184 (HS SKU 900006): 18mm Hole Diameter, 17.5mm Length
  • #BH244 (HS SKU 900008): 24mm Hole Diameter, 25.4mm Length

Read More

A SOSS hinge is a type of concealed hinge that is designed to be completely hidden from view when the cabinet or door is closed. There are several reasons why someone might choose to use a SOSS hinge:

  1. Aesthetics: SOSS hinges provide a sleek and clean appearance to cabinets and doors, as they are completely hidden from view.

  2. Security: Because the hinge is concealed, it makes it more difficult for someone to tamper with or remove the door.

  3. Space-saving: SOSS hinges allow doors to be opened and closed without needing extra clearance space for the hinge, making them a good option for tight spaces.

  4. Durability: SOSS hinges are designed to be durable and long-lasting, as they are typically made from high-quality materials like brass or stainless steel.

Overall, if you are looking for a hinge that provides a sleek and clean appearance while also offering durability and security, a SOSS hinge may be a good choice.

Warranty

WARRANTY:

UIP warrants its products only against defects in materials and workmanship for a period of one year from the date of UIP’s shipment when its products are used for the service recommended. UIP’s liability and its customer’s exclusive remedy under this warranty or any warranty, expressed or implied, is expressly limited to refund of the purchase price, repair or replacement at UIP’s option, during said period, upon proof of the defect satisfactory to UIP, and upon the purchaser’s returning the product to UIP after securing return goods authorization for the defective material to the place designated by UIP. There are no warranties other than those contained in this agreement, and neither any representation or affirmation made, nor any drawing or sample shown, will be deemed to create any warranty or standard of performance. In the event that any UIP product is modified at any place other than the point of original manufacture, this warranty is null and void. THE WARRANTY SET FORTH IN THIS PARAGRAPH IS MADE EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED, IMPLIED OR STATUTORY, INCLUDING BUT NOT LIMITED TO, WARRANTIES WITH RESPECT TO QUALITY, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10253

CA Prop 65 Warning

  • Manufacturer
    Soss
  • Finish Name
    Brass
  • Material
    Brass
  • Mounting Hardware Included
    Yes

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Based on 5 reviews
60%
(3)
40%
(2)
0%
(0)
0%
(0)
0%
(0)
M
Mark L.

Soss Concealed Barrel Hinge

E
Edward S.
Soss barrel hinges

Excellent service, ordered wrong parts and the ease of correcting my error went smoothly.

J
Johnny L.
BH085 hinges

Great little barrel hinges. Ordering a second set. Used for a vertical book style earring stand using maple and purpleheart. Practicing on scrap wood first for hole size and spacing helps. I used a digital caliper to insure proper hole depth before inserting hinge.

J
Jenna M.
Great Hinges

I used these hinges for a flag case I made of walnut. This was the first time using these hinges. They are a little difficult to get right on the first try. I did a test run on some scrap walnut to get the fit just right. Make sure you don’t put the hinges in until you’re for sure ready. If the fit is right, once it goes in, the only way it’s coming out is by damaging either the hinge itself or the wood.

D
David D.
Great hinges but

Great hinges but one was bent. Managed to straighten it. Company responded promptly but I had fixed the problem
