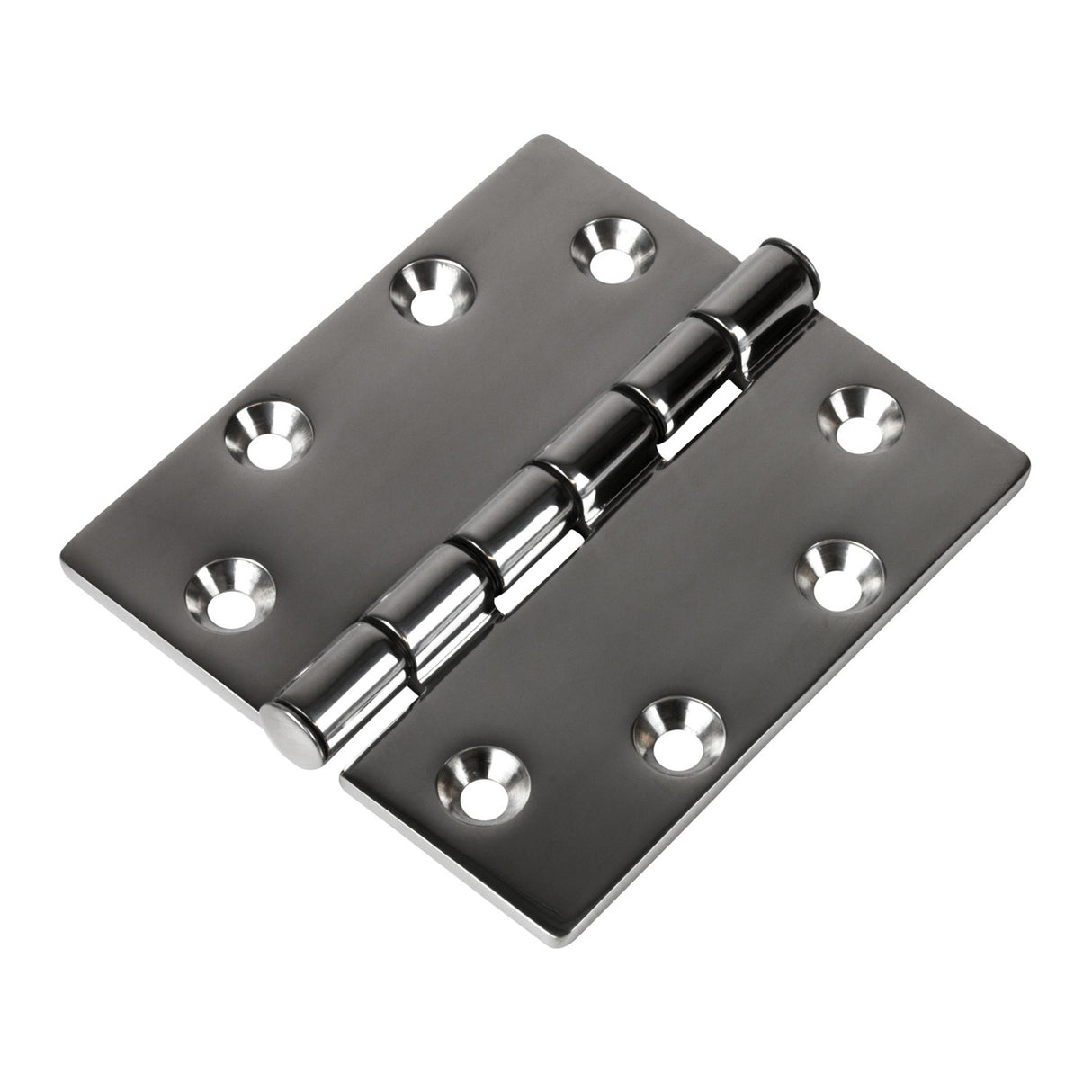

Stainless Steel Butt Hinge, 4-1/2 x 4, Type 316
Couldn't load pickup availability
Description
Description
- Heavy duty stainless steel butt hinge made from Type 316 Stainless Steel (Investment cast).
- Type 316 Stainless Steel is a high grade stainless steel, also known as Marine Grade Stainless Steel.
- Hinge features a non-removeable hinge pin and integral nylon bearings for a silent no-rattle movement.
- May be surface mounted or installed as a full mortise butt hinge.
- If installed as a full mortise butt hinge, the door thickness range is 1-3/8" to 1-3/4".
- Also, If installed as a full mortise butt hinge, it requires a deeper mortise than a normal 4-1/2 x 4 hinge which are approximately .130" thick.
- These hinge leaves are 3/16" or .1875" thick.
- Uses #14 flat head screws (8 per hinge) which are not included but can be found under related products below. Screws offered are 304 grade stainless.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: 897226
-
Finish Name
-
MaterialStainless Steel (316)
-
Size4-1/2" x 4"
-
Width
-
Height
-
CornerSquare
-
BearingsPlain Bearing
-
Removable PinNo
-
Decorative TipsNo
-
Mounting Hardware Included
-
Mounting Hardware Type
