Straight Arm Hinge for Frameless Cabinets, 40mm Cup - Bundle
Couldn't load pickup availability
Description
Description
- This European hinge has an extra large 40 millimeter (approx 1-9/16") cup for thick doors.
- This hinge is made for overlay doors on a frameless cabinet (no face frame).
- Minimum side panel thickness is 16mm (5/8").
- Maximum door thickness is 1-1/2".
- The overlay range is 10mm to 34mm depending on the mounting plate and bore distance used.
- See "How to Select Your Mounting Plate" at the document found under Downloads to determine which mounting plate and bore distance is needed to acquire the desired overlay.
- After installation, the overlay is slightly adjustable:
- It can be decreased by 0.5 mm
- It can be increased by 5.5 mm
- Hinges are 3-way adjustable after installation. Mounting plates are 2-way adjustable after installation.
- Mounting plates and hinges connect by "snapping" together.

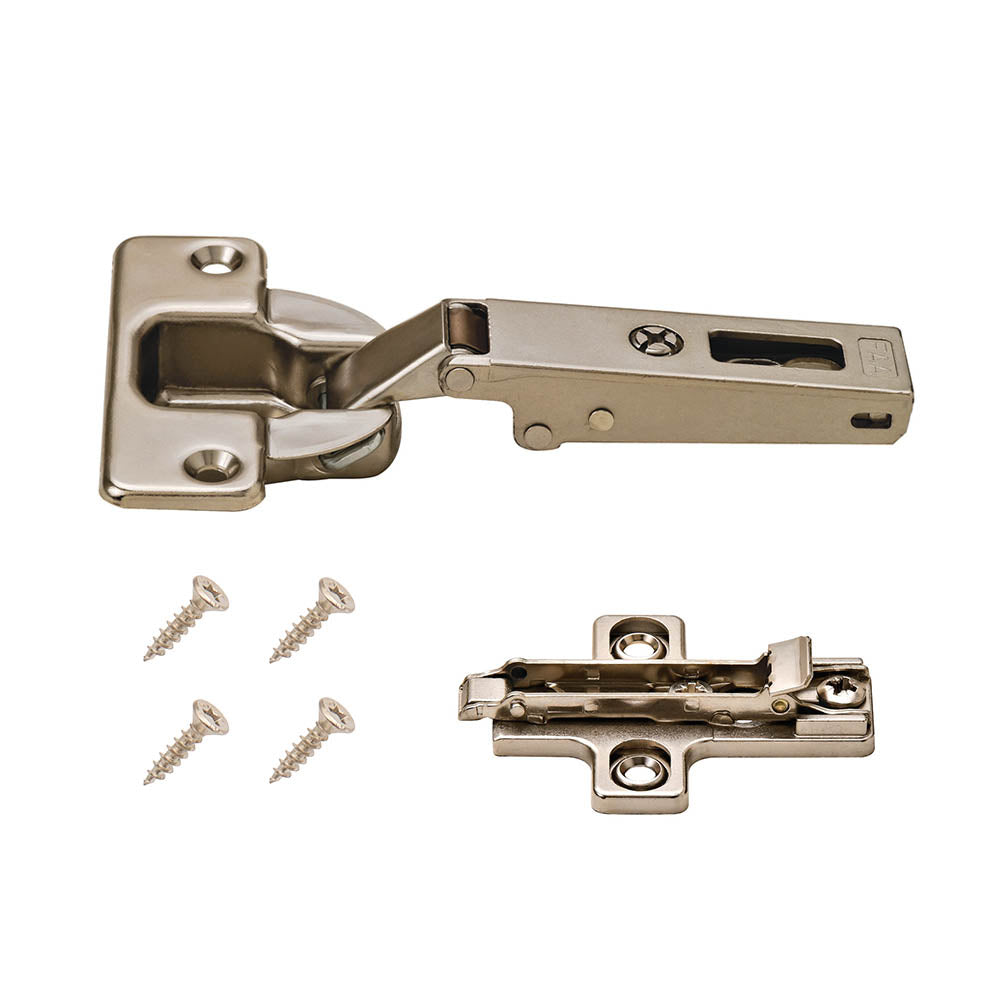

What's Included
- 1 x 40mm Cup Straight Arm Hinge
- 1 x Mounting Plate (six options available, please see "How to Select Your Mounting Plate" below)
- 4 x #6 Wood Screws
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: B10072
-
Manufacturer
-
Model Number
-
Finish Name
-
MaterialSteel
-
Cabinet Door TypeFull Overlay, Thick Door
-
Soft CloseNo
-
Self-ClosingYes
-
Plate Connection Type
-
Opening Angle94 Degrees
-
Cup Diameter
-
Screw Hole Spacing52mm (2-1/16")
-
Mounting Hardware Included
-
Mounting Hardware Type
