Straight Arm Hinge for Frameless Cabinets - Bundle
Couldn't load pickup availability
Description
Description
- Titanium finish European style hinge
- Straight arm model for frameless overlay doors
- Titanium plating over steel base material. This plating provides a nice aesthetic while offering superior corrosion resistance.
- Please note that these hinges do have some nickel parts that are visible. For example, the adjustment screw, rivet ends and some visible internal parts are nickel finish.
Installation
- Hinge cup installs in a 35mm (1-3/8") diameter cup drilled in the back of the door
- Cup depth needs to be a minimum of 11 mm deep (7/16").
- This hinge and the proper mounting plate will accommodate any overlay from 1/8" to just under 13/16.
- European hinges are a two part hinge, made up of the hinge and a mounting plate. Use the document found under Downloads for information on how to choose the correct mounting plate.
- Each hinge comes with two plastic dowels and two dowel screws.
- Dowels and dowel screws are recommended for doors that are made from pressed or manufactured wood
- Dowel screws are regular wood screws that are a slightly shortened and blunt version of a wood screw.
- For solid wood doors, wood screws (no dowels) are recommended.
- For solid wood doors, discard the plastic dowels and either use the dowel screws or purchase regular bronze #6 flat head wood screws (2 each per hinge, our SKU 286255)

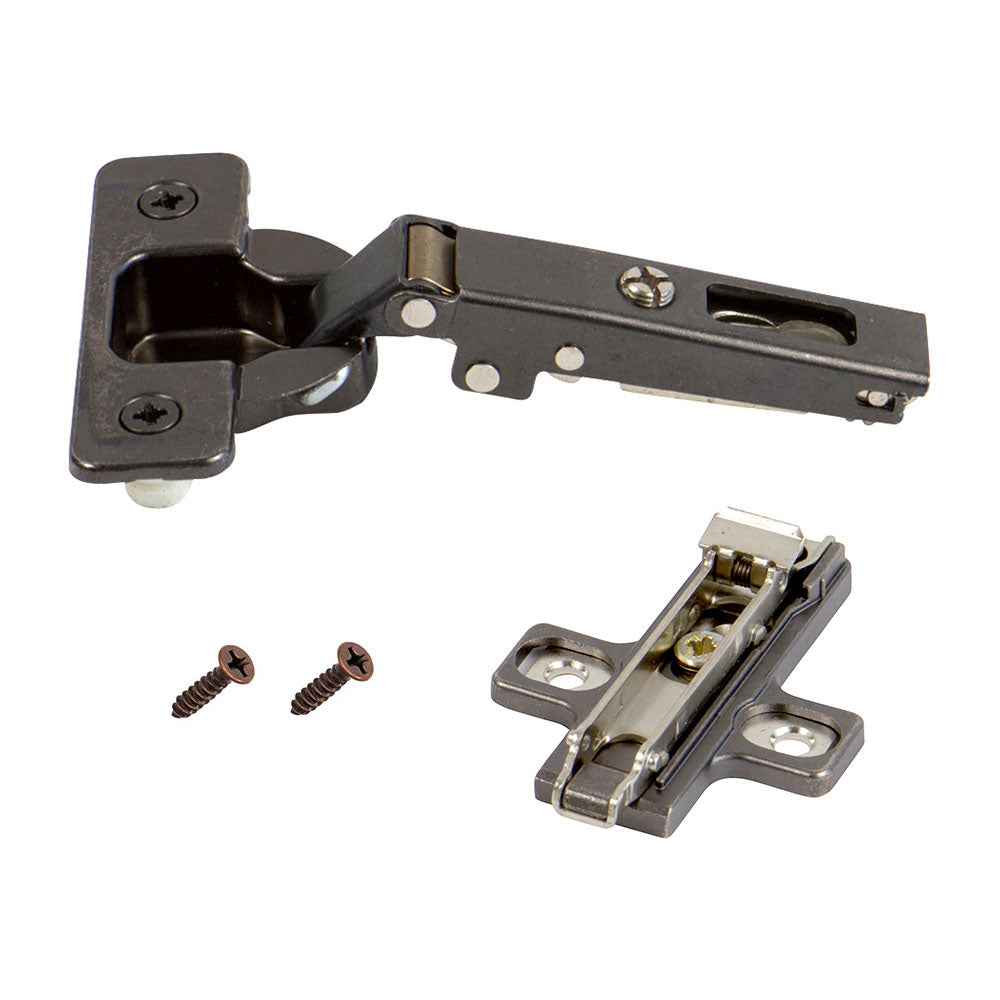

What's Included
- 1 x Titanium Finish Straight Arm European Hinge
- 1 x Frameless Mounting Plate (two options available).
- 2 x Plastic Dowels and Dowel Screws (preattached to hinge)
- 2 x #6 x 5/8" Flat Head Wood Screws for Mounting Plate
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: B10060
-
Manufacturer
-
Model Number
-
Finish Name
-
MaterialSteel
-
Cabinet Door TypeHalf Overlay, Full Overlay
-
Soft CloseNo
-
Self-ClosingYes
-
Plate Connection Type
-
Opening Angle110 Degrees
-
Cup Diameter
-
Screw Hole Spacing45mm (1-3/4")
-
Mounting Hardware Included
-
Mounting Hardware Type
