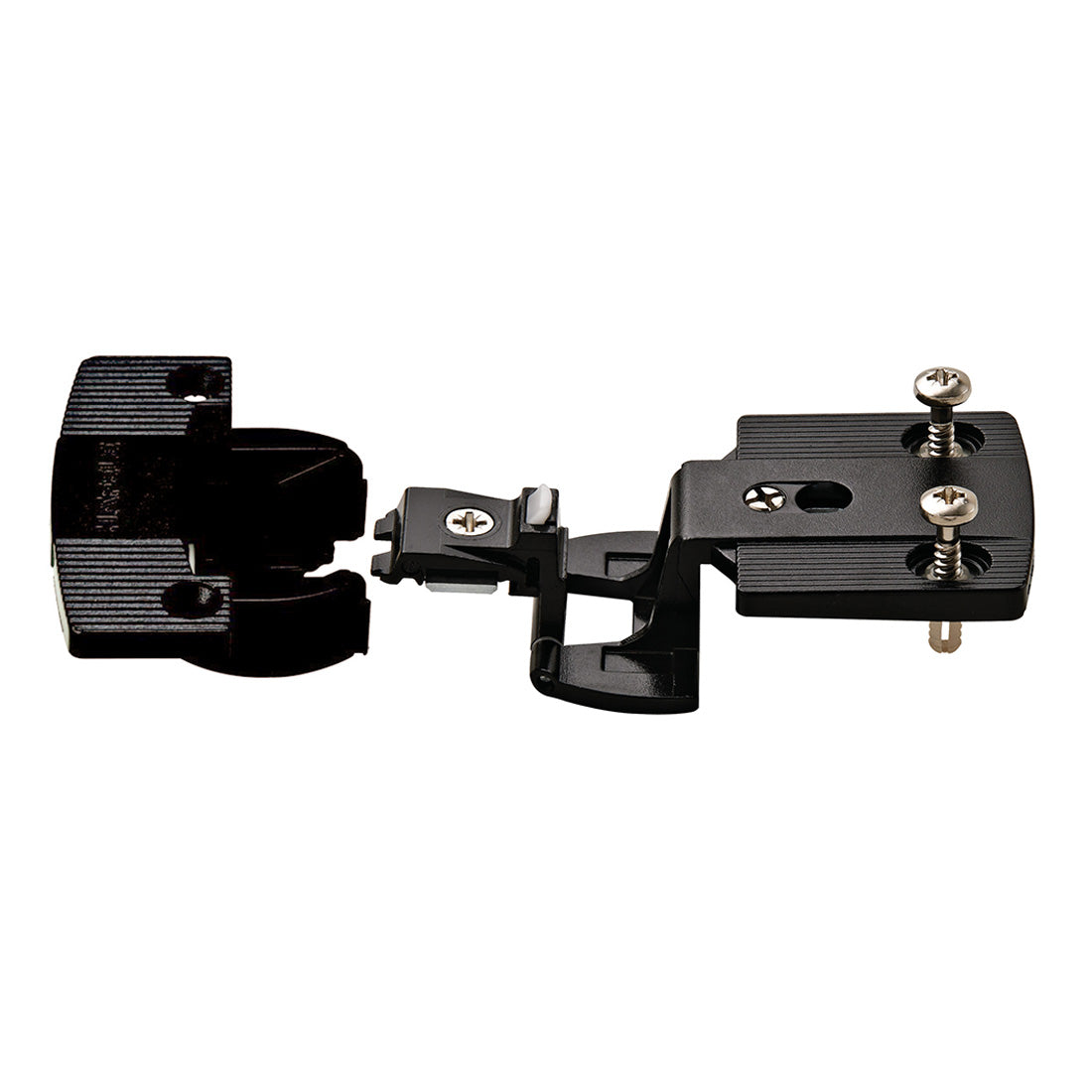

Aximat Full Overlay 270 Degree Hinge, Black
Couldn't load pickup availability
Description
Description

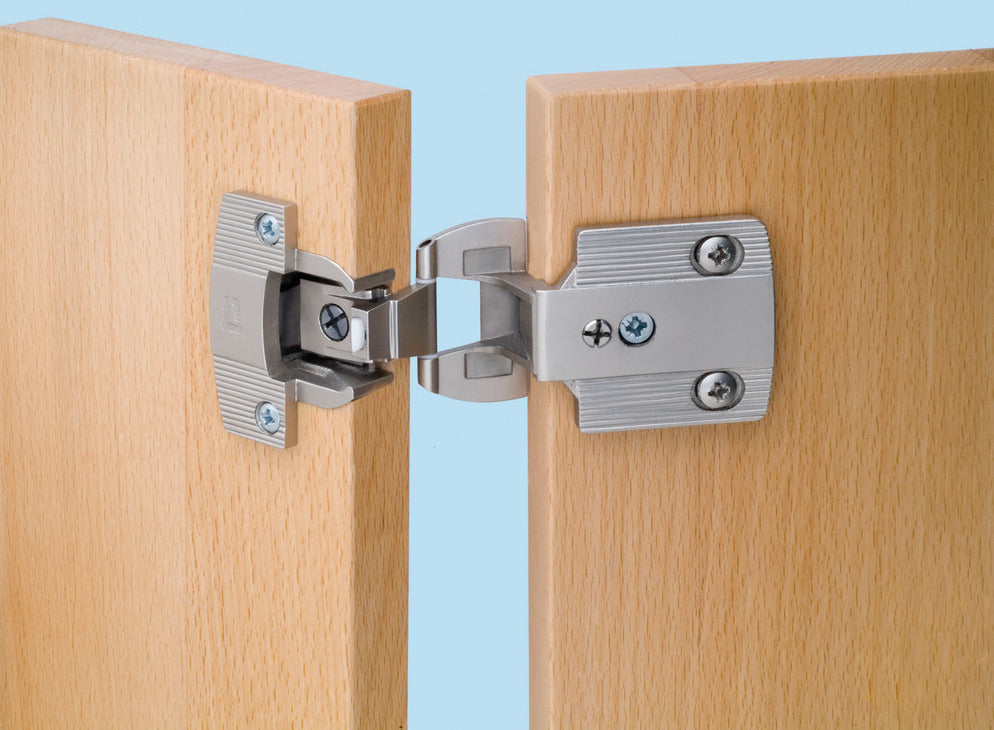

- This is the new style Aximat hinge for full overlay doors. It replaces the old style Aximat hinge which is no longer available.
- For cabinets with 3/4" (19mm) thick door and 3/4" (19mm) thick side panel.
- Installs in a 35mm cup drilled in the back of the door.

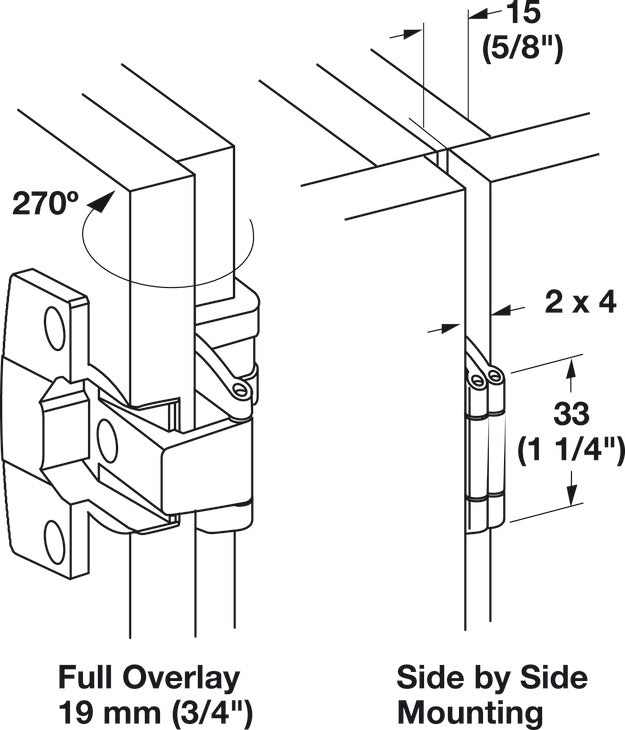

- Door overlay will be 19mm (3/4"), full overlay.
- Hinge allows door to be free swinging and has an internal snap catch which holds the door in the closed position.
Notes

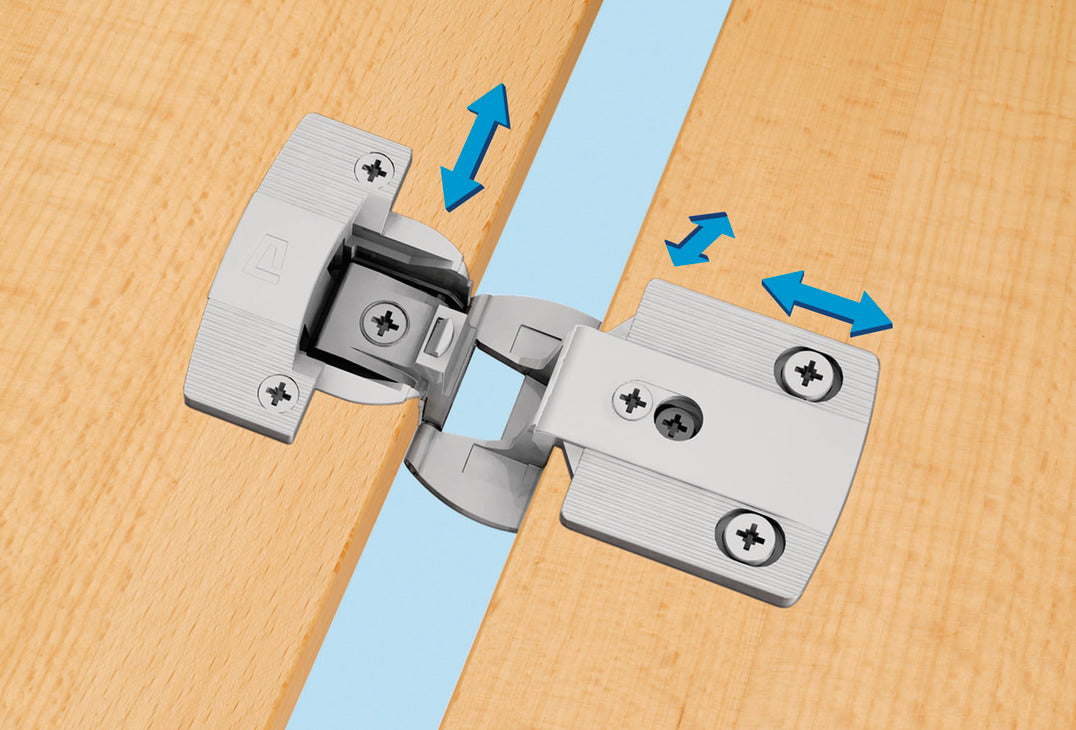

- A single hinge is made up of two separate parts which snap together to become the hinge.

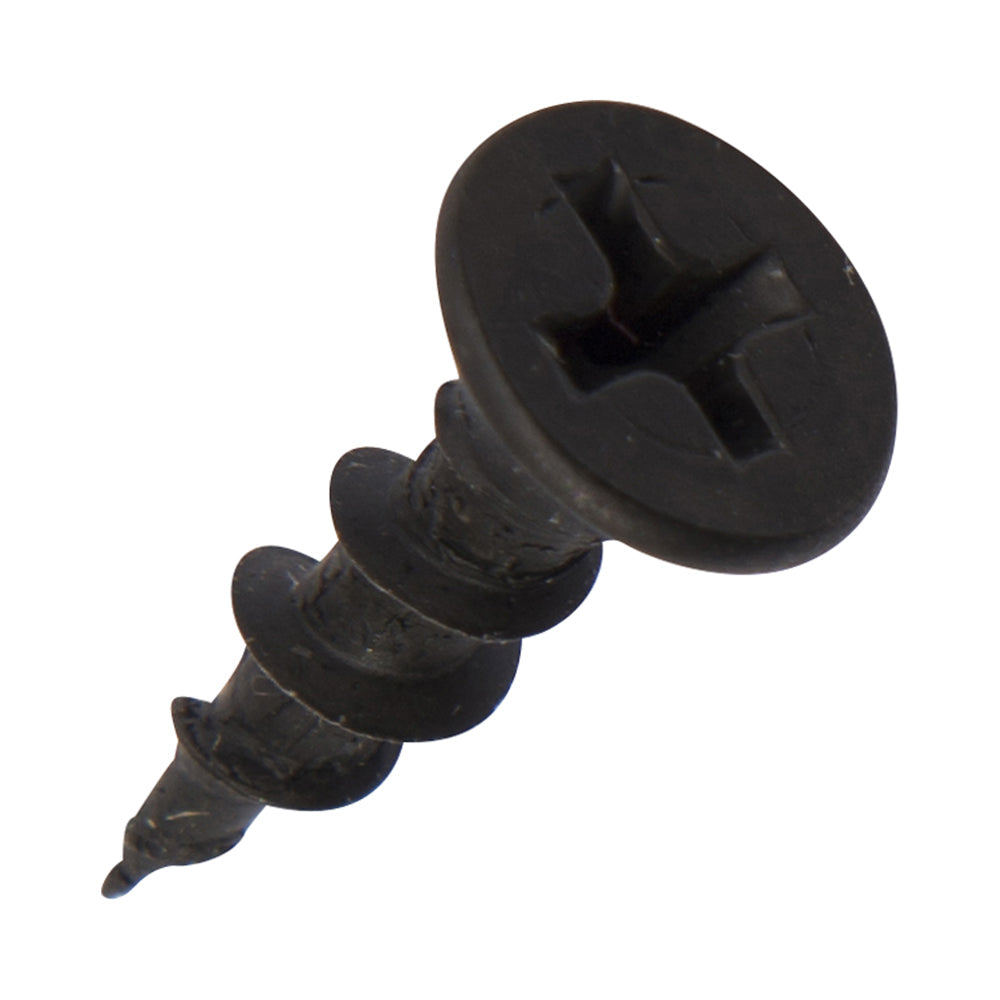

- Each arm side comes with two screws and two plastic dowels which are sized for a 5mm (3/16") hole. The cup side of the hinge uses two #6 flat-head screws.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: B10000
-
Finish Name
-
MaterialCast Metal
-
Cabinet Door TypeFull Overlay
-
Soft CloseNo
-
Self-ClosingNo
-
Plate Connection Type
-
Cup Diameter
-
Screw Hole Spacing45mm (1-3/4")
-
Mounting Hardware Included
-
Mounting Hardware Type
