Aximat Half Overlay 240 Degree Hinge
Couldn't load pickup availability
Description
Description
- This is the new style Aximat hinge for half overlay doors.
- For cabinets with 3/4" (19mm) thick door and 3/4" (19mm) thick side panel.
- Installs in a 35mm cup drilled in the back of the door.

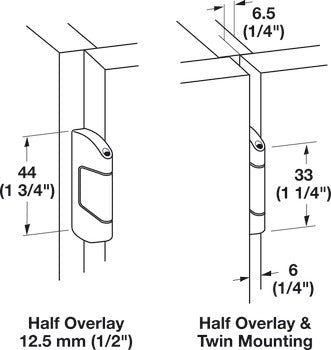

- Door overlay will be 12.5mm (1/2") half overlay.
- Hinge allows door to be free swinging and has an internal snap catch which holds the door in the closed position.
Notes

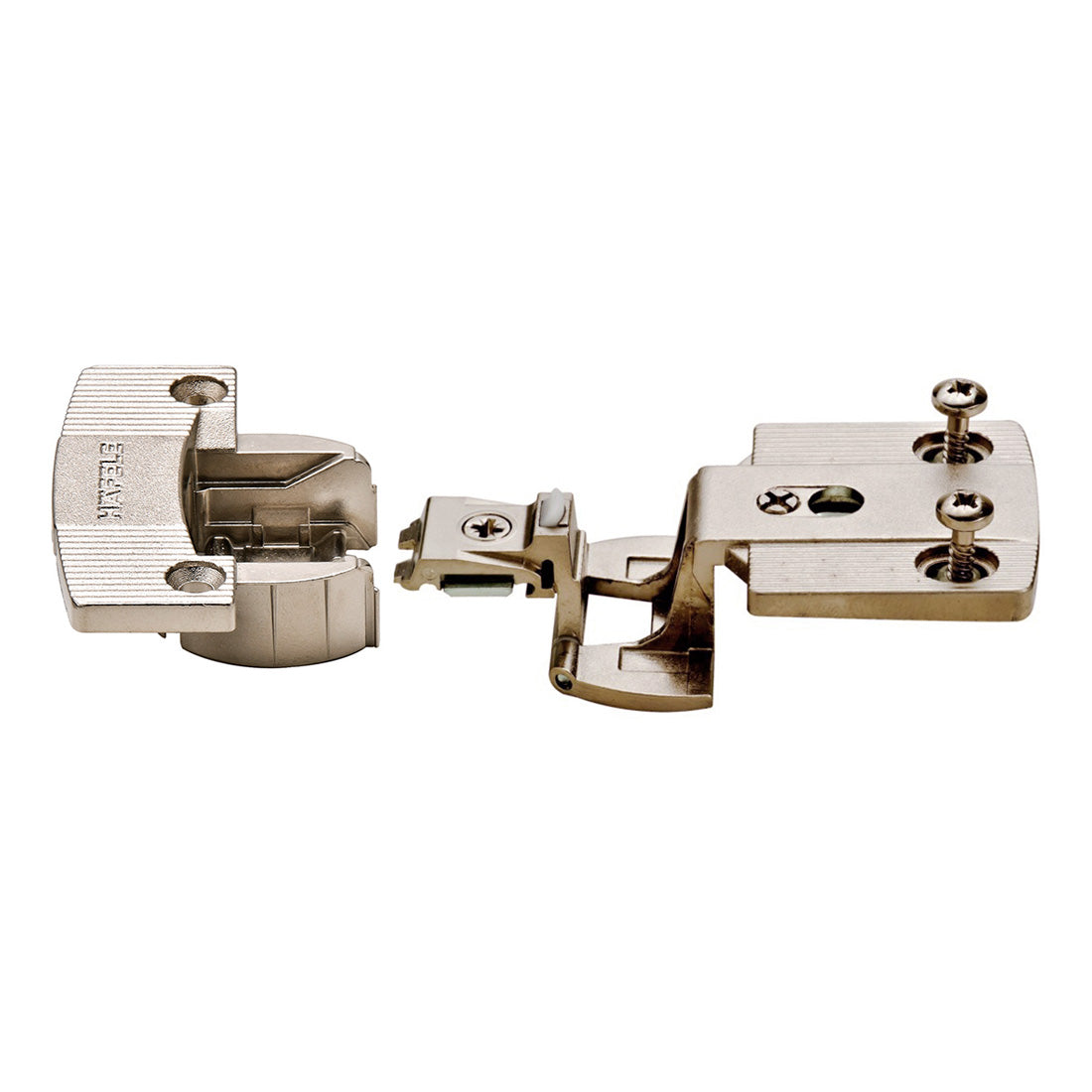

- A single hinge is made up of two separate parts which snap together to become the hinge.

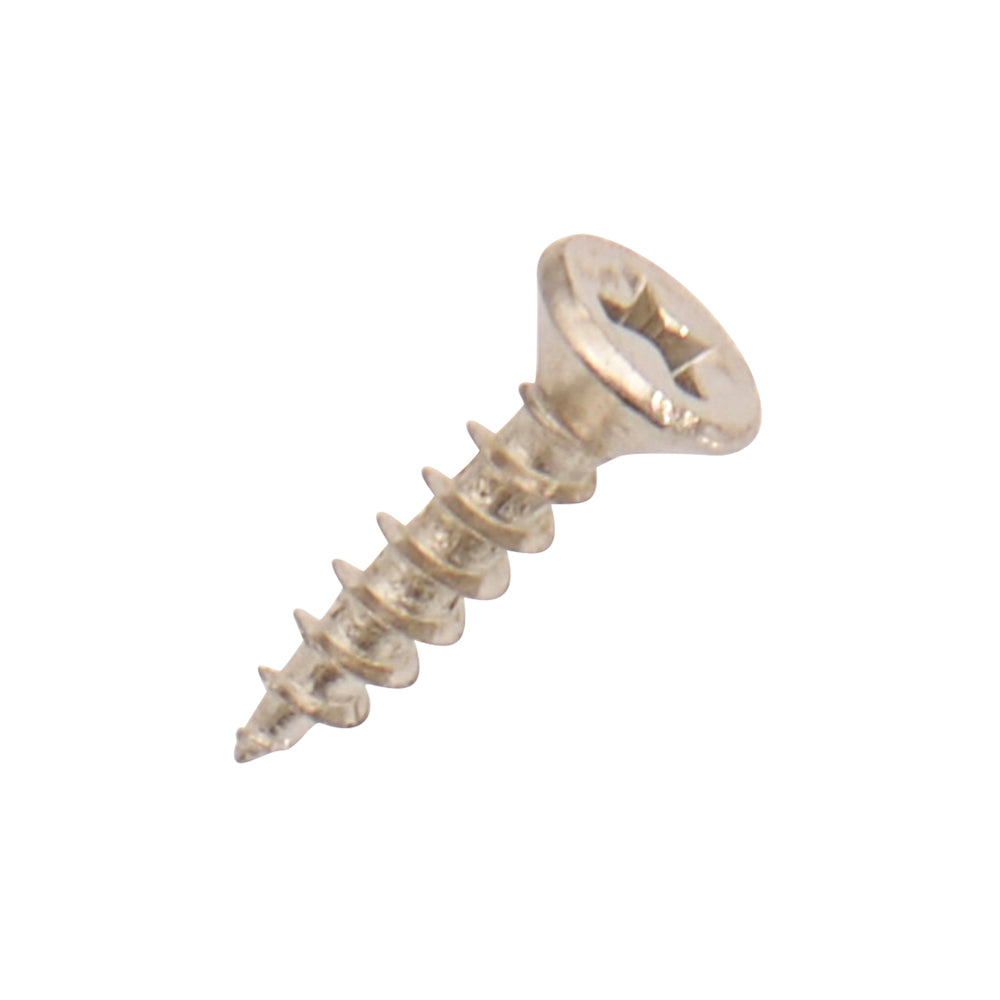

- Each arm side comes with two screws and two plastic dowels which are sized for a 5mm (3/16") hole. The cup side of the hinge uses two #6 flat head screws.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: B10002
-
Finish Name
-
MaterialCast Metal
-
Cabinet Door TypeHalf Overlay
-
Soft CloseNo
-
Self-ClosingNo
-
Plate Connection Type
-
Opening Angle240 Degrees
-
Cup Diameter
-
Screw Hole Spacing45mm (1-3/4")
-
Mounting Hardware Included
-
Mounting Hardware Type
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Related Products
| Facet | |||||
|---|---|---|---|---|---|
| Price | |||||
| Price |
$1044
Each
Unit price
/
Unavailable
|
$1460
Each
Unit price
/
Unavailable
|
From
$006
Each
Unit price
/
Unavailable
|
$599
Each
Unit price
/
Unavailable
|
From
$733
Each
Unit price
/
Unavailable
|
| Description | |||||

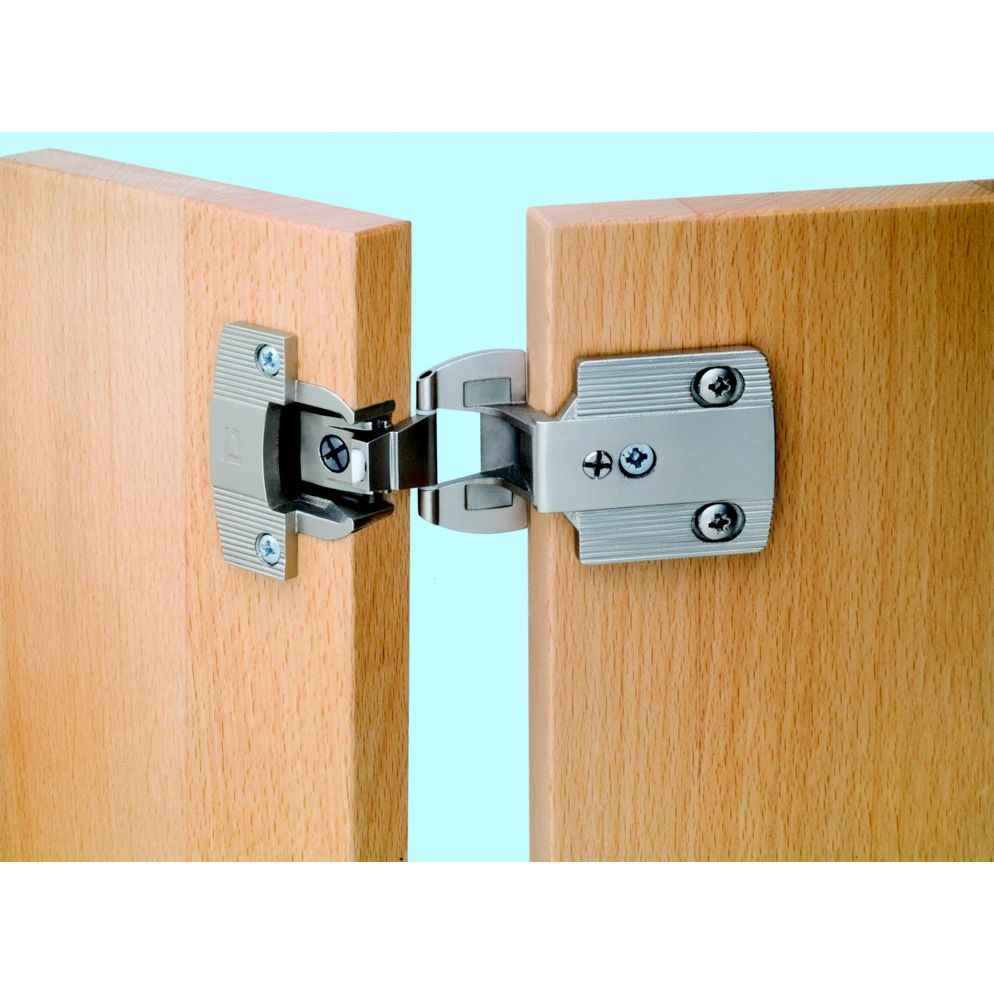

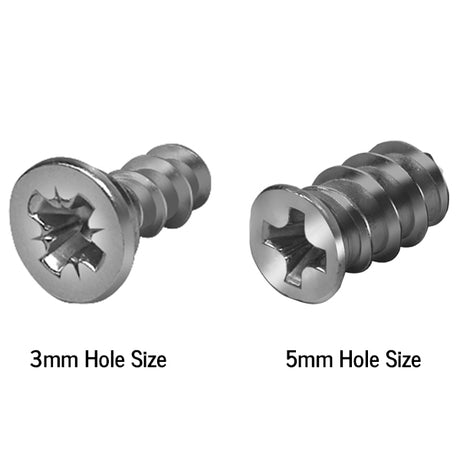

| Description | This is the new style Aximat hinge for full overlay doors. It replaces the old style Aximat hinge which is no longer available.... | This is the new style Aximat hinge for full overlay doors. It replaces the old style Aximat hinge which is no longer available.... | These system screws are well suited for our Aximat hinges and are especially good for attaching to particle board. They also fit the... | Clear, soft, bumpers for cabinet doors. Cabinet door bumper pads are self adhesive, and install to back of cabinet door to dampen closing... | This casework hinge allows doors to open 270 degrees. Also known as an entertainment center hinge. The holes on the door side of... |
