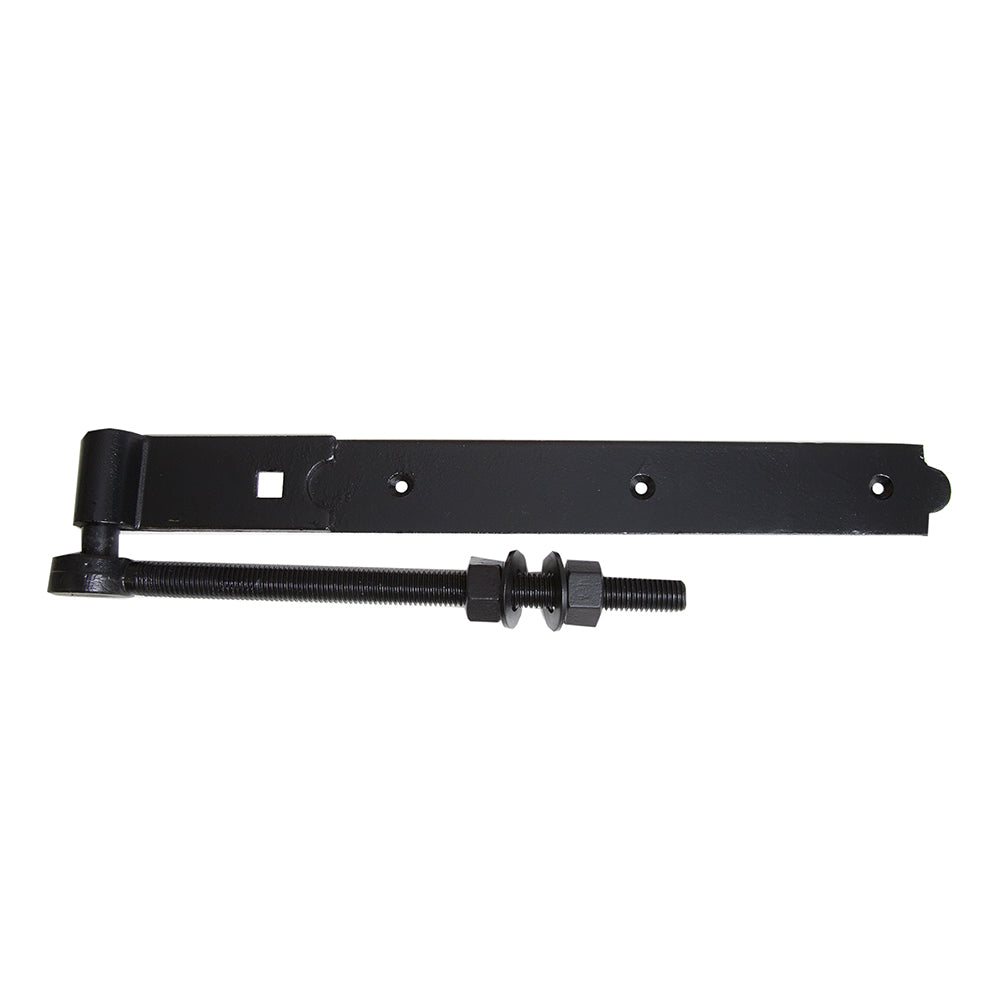

Bolt & Strap Pintle Hinge Back
Couldn't load pickup availability
Description
Description
- Bolt-and-strap pintle hinges are designed with a long pintle bolt that attaches through the post or wall, creating a strong hold.
- The long bolt allows for adjustability for the perfect installation.
- Sold by the pair, a pair includes two straps, two pintle bolts, and a fastener pack.
- A pair is what is normally needed to install one gate
- Black powder coated finish.
12 Inch Strap
- Strap: 12" L x 1.5" W x 3/16" D
- Bolt: 11" L (center of the pivot point to the end of the strap), 5/8" diameter, threaded its entire length
- Pintle: 5/8" diameter, 2.5" L
- Gap dimension: Approximately 2"
- Weight Rating: 70 lb per hinge
18 Inch Strap
- Strap: 18" L x 2-1/4" W x 7/32" D
- Bolt: 11" L (center of pivot point to end of strap), 3/4" diameter, threaded portion maximum attachment is 7-1/2".
- Pintle: 3/4" diameter, 2-1/8" L
- Gap dimension: Approximately 2-1/2"
- Weight Rating: 80 lb per hinge
24 Inch Strap
- Strap: 24" L x 2-1/4" W x 7/32"D
- Bolt: 11" L (center of pivot point to end of strap), 3/4" diameter, threaded portion maximum attachment is 7-1/2"
- Pintle: 3/4" diameter, 2-1/8" L
- Gap dimension: Approximately 3"
- Weight Rating: 120 lb per hinge
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10349
-
Finish Name
-
MaterialSteel
-
Mounting Hardware Included
-
Mounting Hardware Type
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Related Products
| Facet | |||||
|---|---|---|---|---|---|
| Price | |||||
| Price |
From
$1671
Each
Unit price
/
Unavailable
|
$5918
Per Pair
Unit price
/
Unavailable
|
From
$1793
Each
Unit price
/
Unavailable
|
From
$4358
Each
Unit price
/
Unavailable
|
$6224
Per Set
Unit price
/
Unavailable
|
| Description | |||||

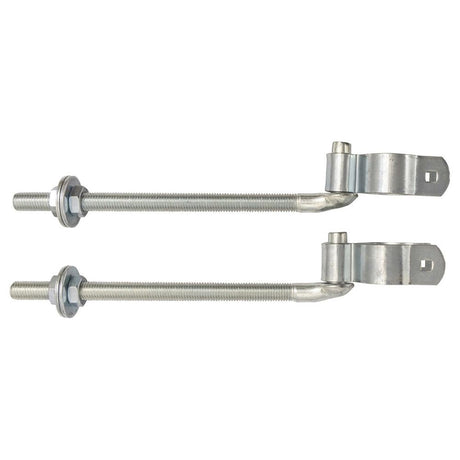

| Description | Note: The sizes listed as the pintle diameter" (for example 3/4" pintle) are nominal dimensions, meaning they do not measure exactly that dimension.... | Made in the USA. Heavy duty livestock gate hinge for use on 2" (outside diameter) round tube gates. Pintle side of hinge "through-bolts"... | Upright pintle mounts to gate post and screw eye mounts to gate or it can be mounted upside down with the screw eye... | Bean style strap hinge with a pintle end This hinge can be used on a gate weighing up to 175lbs (per pair of... | Smooth black stainless steel strap with 2-3/16" offset and a pintle Loose joint hinges permit easy hanging and removal of shutters For use... |
